LG two-stage compression screw air compressor

Power range: 90-400kWEach air compressor reaches Level-1 energy efficiency, and saves 10-15% more power than Level-2 energy efficiency, and saves 20-30% more power than Level-3 energy efficiency."Maki

Category: Air Compressor

Product Description

Power range: 90-400kW

Each air compressor reaches Level-1 energy efficiency, and saves 10-15% more power than Level-2 energy efficiency, and saves 20-30% more power than Level-3 energy efficiency.

"Making contribution to a frugal China" is the core values of Kaishan Co., Ltd. All the two-stage compression series screw air compressors of Kaishan reach Level-1 energy efficiency. As far as we know, so far, among all companies including transnational ones, we are the only air compressor manufacturer that can do this!

The two-stage compression screw air compressors of Kaishan reach the key points of Level-1 energy efficiency:

1. Two-stage compression is closer to the most power-saving isothermal compression than single-stage compression. In principle, two-stage compression saves 5-8% more energy than single-level compression.

Adopting two-stage compression main engine means adopting two sets of SKY screw rotors of different sizes to achieve reasonable pressure distribution and reduce the compression ratio of each compression. Low compression ratio also has two special advantages: 1) reducing internal leakage, and promoting volume efficiency; 2) considerably reducing the load of bearings, promoting the service life of bearings and extending the service life of main engine.

2. World-leading efficiency of rotor molded lines

The most crucial is the efficiency of rotor molded lines, "T" patent molded line developed by Dr. Tang Yan, selected into Recruitment Program of Global Experts, with world-leading efficiency, 5-15% higher than other molded lines.

3. High-level configuration and system optimization

The key points also lie in the local design and details of products, and high-end system configuration and optimization, again 5-8% higher than the efficiency of other brand products.

Highly-efficient main engine and intrinsic air inlet conditioning design, cooling flow-field design, oil-gas separation technology, highly-efficient motor, intelligent automatic control and other innovative technology of JN series, will bring tangible energy-efficient benefit to customers.

4. Ultralow noise

5. Energy-efficiency.

6. High reliability.

Specification of LG two-stage compression screw air compressors


ModelWorking pressure
(Mpa)
Capacity m3/min Power
(KW)
OutletNoise dB(A) Weight
(kg)
Dimension
(mm)
VSD weight
(kg)
VSD dimension
(mm)
KLT90-70.718.890DN657724502460×1440×168025502760×1440×1680
KLT90-80.817.7






KLT110-70.723110DN657832202820×1615×1760332003260×1615×1760
KLT110-80.821.7






KLT110-10118.8

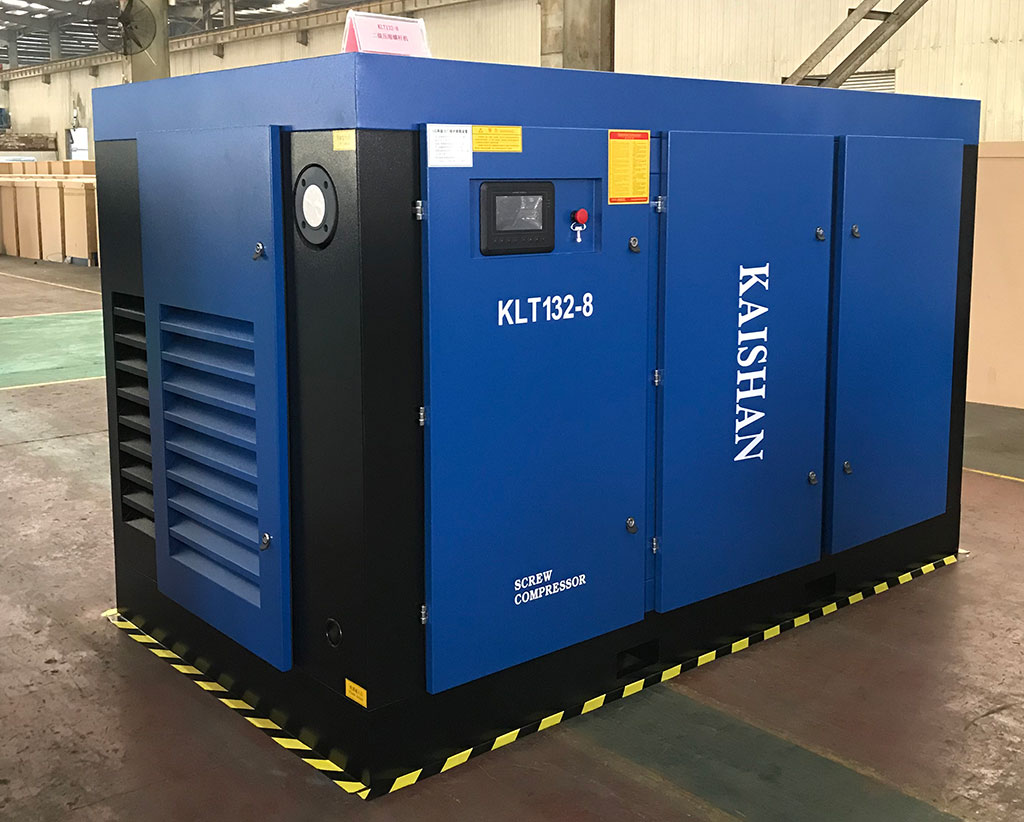

KLT132-70.729132DN657933202820×1615×176034503260×1615×1760
KLT132-80.827.2






KLT132-10122.9






KLT160-70.733.2160DN808041303210×2000×206042503210×2100×2060
KLT160-80.831.2






KLT160-10126.8






KLT185-70.737.5185DN808042003210×2000×206043503210×2100×2060
KLT185-80.834.9






KLT185-10130.6






KLT200-70.742.4200DN808245703210×2000×206047203210×2100×2060
KLT200-80.839.9






KLT200-10134.4






KLT220-70.743.8220DN1008257003510×2160×217058503660×2160×2170
KLT220-80.842.4






KLT220-10137






KLT250-70.748.8250DN1008458003510×2160×217059503660×2160×2170
KLT250-80.846.4






KLT250-10141.8






KLT280-70.757.2280DN1258575004140×2260×234077004140×2360×2340
KLT280-80.853.6






KLT280-10145.8






KLT315-70.765.6315DN1258577004140×2260×234079304140×2360×2340
KLT315-80.860.8






KLT315-10153.1






KLT355-70.773.3355DN1258578004140×2260×234080304140×2360×2340
KLT355-80.869.6






KLT355-10160






Note:

1. Three types, including air cooling, water cooling and frequency conversion, are available for you to choose.

2. The motor has IP23, IP54(IE2K) and IP54(IE3) available for you to choose.

The sample provides only the relevant information of this series of products. If any technical parameter of products is changed, we will not issue any notice separately.
