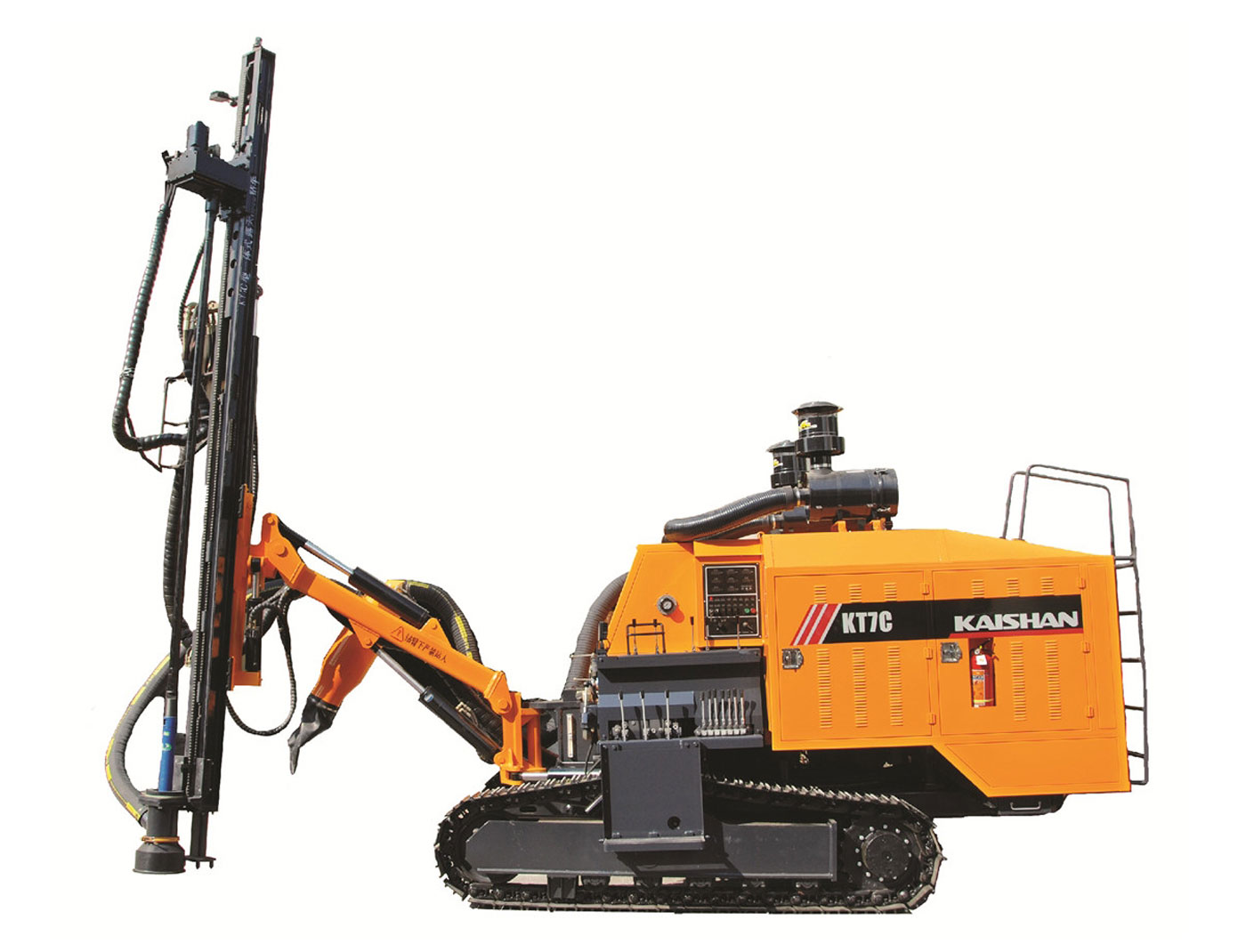

KT7C Integrated Surface DTH Drilling Rig
“Kaishan” KT7C integrated surface DTH drilling rig is advanced drilling equipment integrating down-the-hole drilling system and screw air compressor system. It is of compact structure, well integrated
Category: Surface drill rigs
Product Description
“Kaishan” KT7C integrated surface DTH drilling rig is advanced drilling equipment integrating down-the-hole drilling system and screw air compressor system. It is of compact structure, well integrated and easy to move and its two systems are powered by a diesel engine with six cylinders.
Its high air pressure screw compressor head with core intellectual product and single stage compression adopts internationally advanced Tangshi Y-line to produce high flow (13m³/min) and high air pressure (1.7MPa), thus it provides strong power for high pressure pneumatic hammer and its drilling speed is 20%-50% higher than that of medium Working pressure drilling rig.
Leave a Review
Related Products
KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize op...
Kaishan high pressure series mobile screw air compressor: saving oil for 100L every day!Triple air filter system / Tr...
Brand: Kaishan
Type: Portable,stationary
Power:Cummins(550hp/404kw)
Yuchai(150hp/118kw-750hp/551kw)...
Technical Parameters of KT7C Integrated Surface DTH Drilling Rig
Rock rigidity
f=6-20
Drilling diametermm
90-105
Economic drilling depth (m)
30
Travel speed Km/h
2．5
Climbing capacity
25°
Ground clearancemm
430
Total Power kW
195
Diesel
YuchaiYC6A260-T303
Capacity of screw compressor m3/min
13
Discharge pressure of screw compressor bar
17
Dimensions (long×width×high)mm
8000×2260×2800
Weight Kg
9500
Rotation speed (Two-Speed)r/min
0-120
Rotary torque N*m
1900
Max. feed force N
25000
Boom lift
Up 28° down 42°
Guide tilt
129°
Guide swing
Right 38° left 35°
Lateral horizontal guide swing
Right42°～89°
Boom swing
Right 39° left 60°
Frame balance angle
Up10° down9°
Feed length at a timemm
3000
Compensation lengthmm
900
Hammer
35A
Drill rod
φ64×3000mm
Dust catching method
Dry-type (hydraulically driven whirlwind layer flow type)
