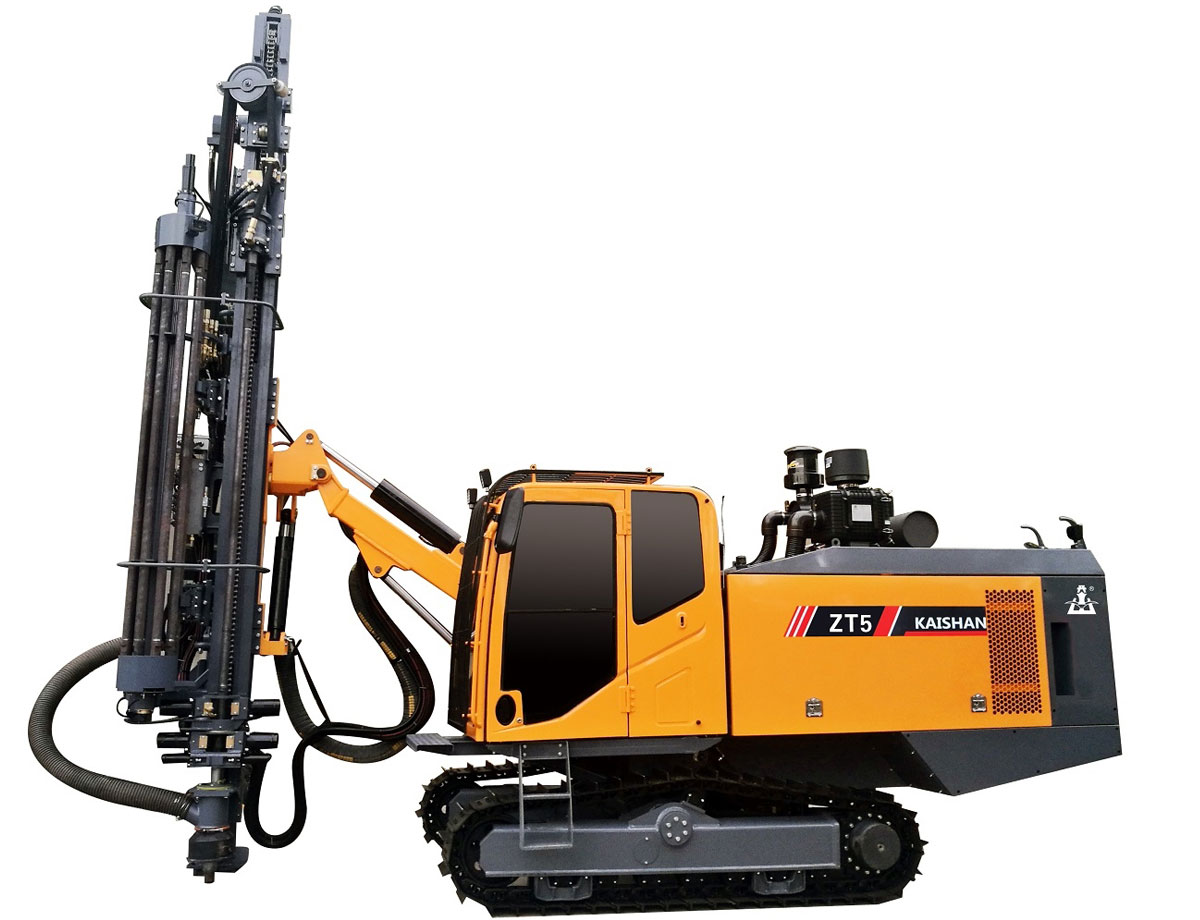

ZT5 Integrated DTH Drilling Rig
ZT5 integrated surface DTH drilling rig is using weichai diesel engines as a single power, by both ends of the output at the same time to drive the screw compression system and hydraulic drive system,
Category: Surface drill rigs
Product Description
ZT5 integrated surface DTH drilling rig is using weichai diesel engines as a single power, by both ends of the output at the same time to drive the screw compression system and hydraulic drive system, can drill φ90-105mm vertical, inclined and horizontal hole. This DTH drilling rig is mainly used to drill holes and pre-crack hole for open-pit mines and stonework project. The drilling rig is equipped with automatic unloading rod system and drill rod lubrication module, which can realize single operation and reduce mine operation personnel. The drilling rig mastering action is integrated on a handle and is simple to operate with an anti-seizure system. Drilling angle and depth indication are provided to simplify drilling process control and improve hole quality. Efficient dust collection system, spacious cab, high-power heating and air conditioning and high-quality audio equipment provides a high-quality operating environment, to maximize operator efficiency.
Leave a Review
Related Products
KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize op...
Kaishan high pressure series mobile screw air compressor: saving oil for 100L every day!Triple air filter system / Tr...
Brand: Kaishan
Type: Portable,stationary
Power:Cummins(550hp/404kw)
Yuchai(150hp/118kw-750hp/551kw)...
Technical Parameters of ZT5 Integrated Surface DTH Drilling Rig
Transportation size(L*H*W)
8630*2100*2830
Rod number
7+1
Weight
13000Kg
Drilling rod specification
Φ64*3000 mm
Rock hardness
f=6-20
Hammer
3inches
Drilling diameter
90-105mm
Engine
Weichai WP6240E330
Ground clearance
430mm
Cylinder number
6
Track angle
10°up, 10°down
Output power
176KW/2200rpm
Driving speed
0-3Km/h
Hydraulic pump
4× Gear pump
Gradeability
25°
Screw air compressor
Kaishan
Traction force
120KN
Capacity
12m³/min
Torque
1400Nm
Working pressure
15Bar
Rotating speed
0-120rpm
Drive control system
Hydraulic pilot
Boom lift
Up 47°, down 20°
Drilling control system
Hydraulic pilot
Drilling boom swing angle
Right 50°, left 20°
Prevent stuck
Automatic electro-hydraulic prevent stuck
Carriage angle
Right 95°, left 95°
Voltage
24V, DC
Pitch angle of carriage
120°
Safety cab
Meet the requirement ROPS & FOPS
Compensation stroke
1200mm
Noise
Less than 85dB (A)
Propulsion machine stroke
3490mm
Seat
Adjustable
Maximum propulsion
25KN
Air conditioning
Standard
Propulsion method
Hydraulic motor&Roller chain
Entertainment
Radio
Automatic drilling depth
24m
