Preas screw air compressor

Boreas (Boreas, name of the wind god in Greek mythology) series screw compressors satisfy requirements of the masses of users in the field of low-power, low priced screw compressors.Less quick-wear pa

Category: Air Compressor

Product Description

Boreas (Boreas, name of the wind god in Greek mythology) series screw compressors satisfy requirements of the masses of users in the field of low-power, low priced screw compressors.

Less quick-wear parts, compact structure and good stability.

Man-machine interface display control system.

Particularly convenient and simple to operate.

Running status clear at a glance.

Capable of 24-hour unattended operations.

With standby output interface, able to realize multiple units interlocking control and remote diagnostic control.

New-generation low-consumption and high-efficiency motor.

Large starting torque.

Insulation grade F and protection grade IP23.

With refueling device and capable of non-stop refueling.

Efficient air inlet valve.

ON/OFF control mode.

With check valve blowout preventing design.

Built-in oil separation system.

Built-in oil separation design guaranteeing oil and gas separation effects, reducing fuel consumption, and providing adequate assurance for the product quality from the initial design.

Good economics, easy maintenance and suitable for small power host machine.

It provides high-efficiency, easily maintained and more economic air system.


BK7.5-8G

BK11-8G/BK11-8/BK11-10/BK11-13

BK15-8G/BK15-8/BK15-10/BK15-13

ModelBK7.5-8GBK7.5G-8
Working pressure (Mpa)0.80.8
Capacity (m3/min)1.21.2
Motor power(kw)7.57.5
OutletG3/4G3/4
Noise (dB)7272
Weight (kg)200200
Dimension (mm)800×620×800880×510×800

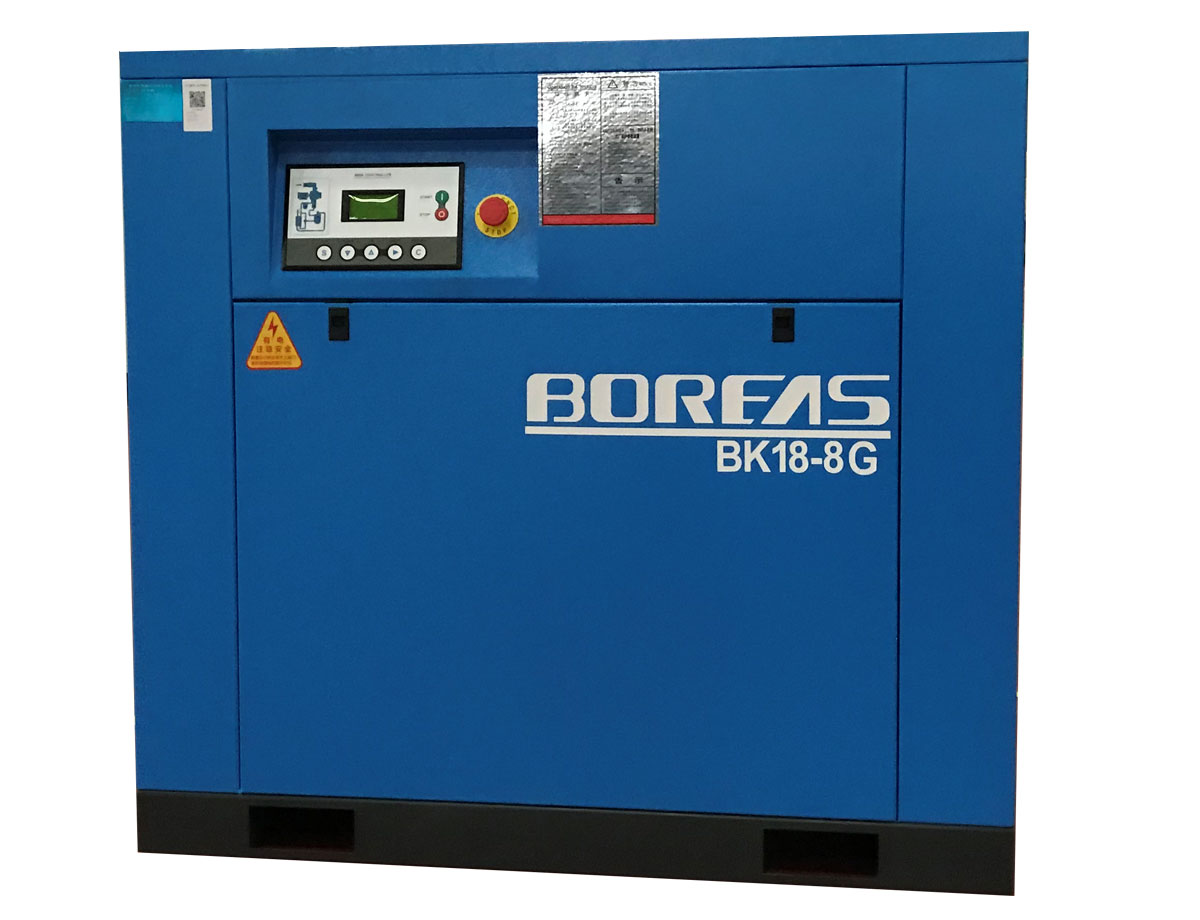

BK18-8/BK18-10/BK185-13

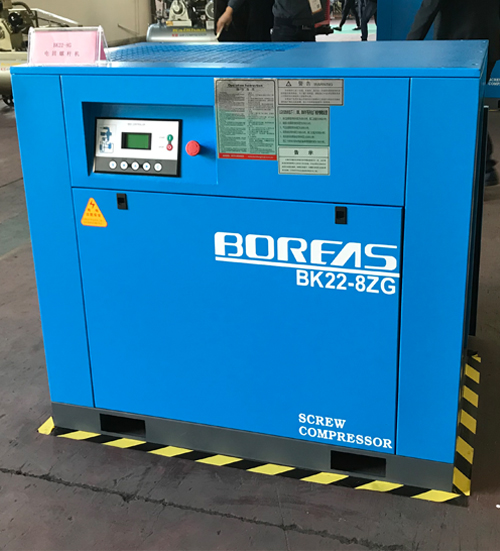

BK22-8G/BK22-10G/BK22-13G

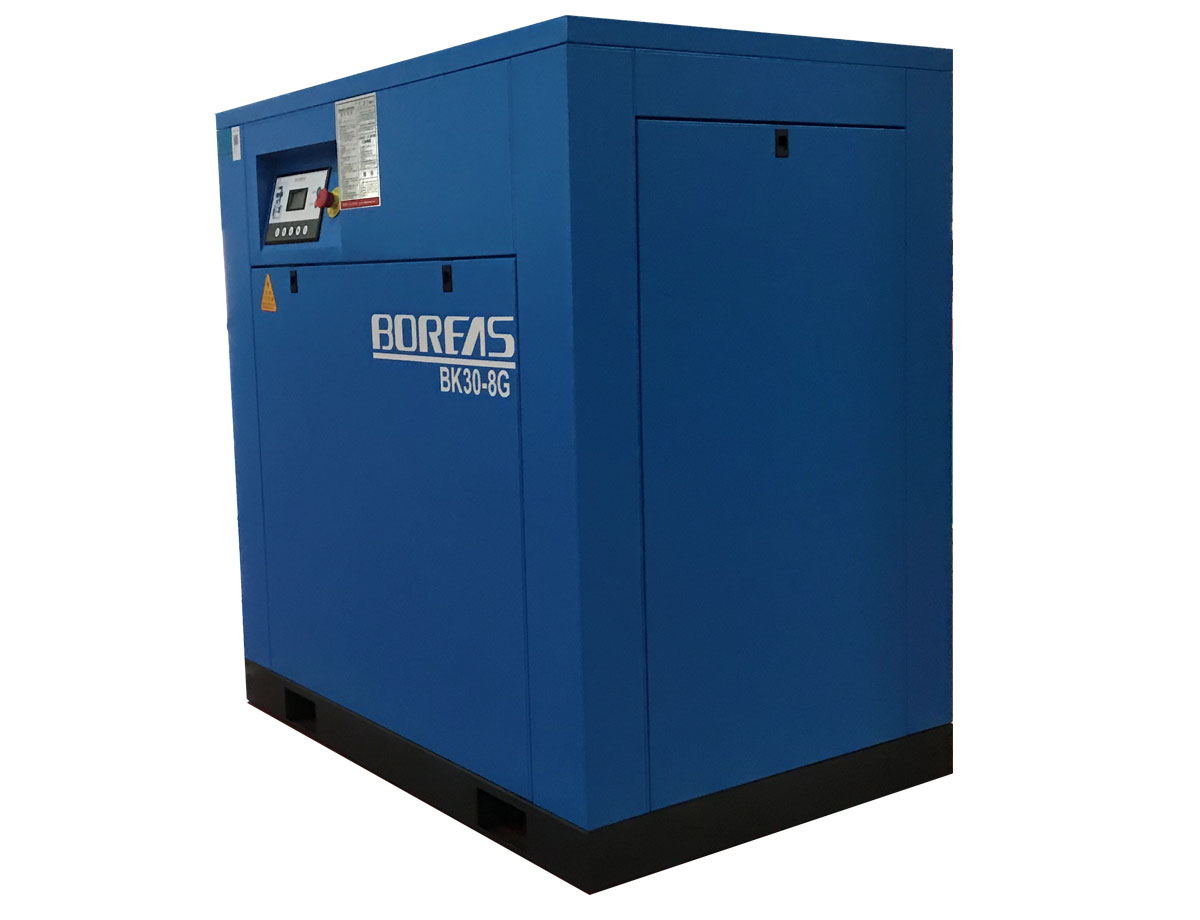

BK30-8G/BK30-10G/BK30-13G

ModelBK22-8GBK22-10GBK22-13G
Working pressure(Mpa)0.81.01.3
Capacity(m3/min)3.63.22.7
Motor power (kw)22

OutletG1

Noise(dB)74

Weight(kg)400

Dimension(mm)1200 × 800×1120

BK37-8G/BK37-10G/BK37-13G

BK45-8G/BK45-8/BK45-10/BK45-13

BK55-8G/BK55-8/BK55-10/BK55-13

ModelBK37-8GBK37-10GBK37-13G
Working pressure(Mpa)0.81.01.3
Capacity(m3/min)65.54.6
Motor power (kw)37

OutletG1½

Noise(dB)76

Weight(kg)570

Dimension(mm)1340×850×1330

BK75-8GH/BKL90-8GH

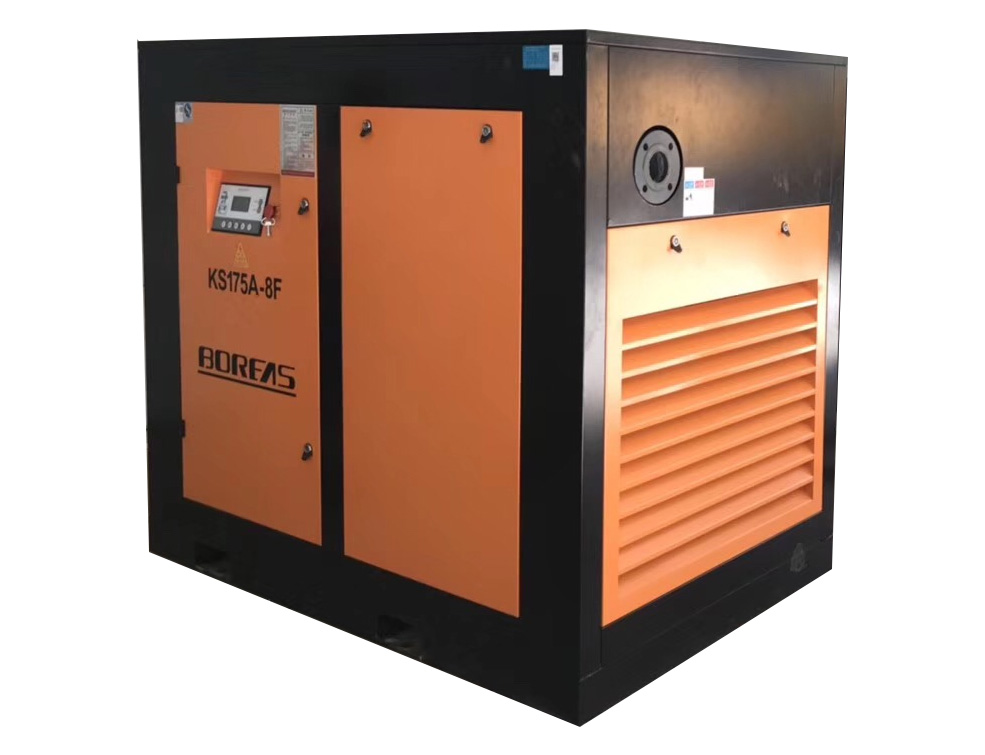

BK110-8GH/BK110-8T/BK132-8GH/BK132-8T/KS175A-8F

ModelBK75-8GHBKL90-8GH
Working pressure(Mpa)0.8
Capacity(m3/min)1316
Motor power (kw)7590
OutletG2
Noise(dB)81
Weight(kg)12001230
Dimension(mm)1800×1190×1710
