Kaitain 0.5Mpa low-pressure screw air compressor

Kaitain 0.3Mpa low pressure screw air compressor is specially made for textile, cement and glass industry.When your air pressure is 0.2-0.5Mpa, conventional 0.7Mpa air compressor will cause huge elect

Category: Air Compressor

Product Description

Kaitain 0.3Mpa low pressure screw air compressor is specially made for textile, cement and glass industry.

When your air pressure is 0.2-0.5Mpa, conventional 0.7Mpa air compressor will cause huge electricity waste, while low pressure screw air compressor under the same motor power can significantly increase the production of compressed air. Accordingly, you can save electricity by 20-50%.

If you purchase 0.7Mpa machine whose actual working pressure is 0.3Mpa, its working process is usually as follows: the screw air compressor first compress the air to 0.7Mpa and reduces the pressure to 0.3Mpa through reducing valve and other ways before use. In other words, you use 0.3Mpa but bear the power consumption caused by 0.7Mpa.

It can also be testified from Capacity:

The Capacity of a screw air compressor, 132kW and 0.7Mpa, should be 24m3/min. However, the Capacity of Kaitain- JN132kW, 0.3Mpa screw air compressor is more than 37m3/min! Thus, the electricity charge saved enables you to recover your investment within less than a year.

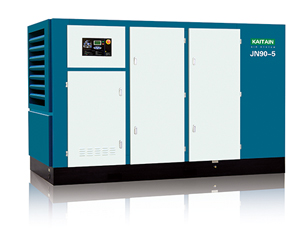

Kaitain KAITEC 0.3Mpa Low Pressure Screw Air Compressor

Kaitain KAITEC 0.3Mpa Low Pressure Screw Air Compressor

Kaitain KAITEC 0.3Mpa Low Pressure Screw Air Compressor


Technical Parameters of Kaitain 0.5Mpa Low Pressure Screw Air Compressor

Kaitain 0.5Mpa Low Pressure Screw Air CompressorParameters






Model

Working pressure
MPa

Capacity
m3/min

Motor power
kW

Noise dB(A)

Dimensions
mm

JN30-5

0.5

6.55

30

69

1980×1050×1460

JN 45-5

0.5

10.7

45

70

2780×1320×1750

JN55-5

0.5

12.5

55

72

2990×1520×1850

JN75-5

0.5

17.49

75

72

2990×1520×1850

JN 90-5

0.5

22.75

90

72

3260×1620×2100

JN110-5

0.5

25.44

110

73

3260×1620×2100

JN 132-5

0.5

30.00

132

75

3660×2060×2280

JN 160-5

0.5

39.83

160

75

3660×2060×2280

JN 250-5

0.5

55.73

250

78

4160×2250×2350
