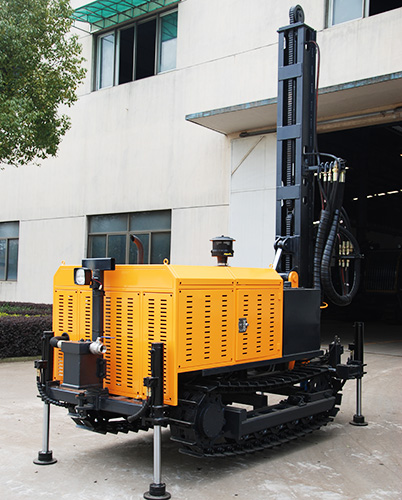

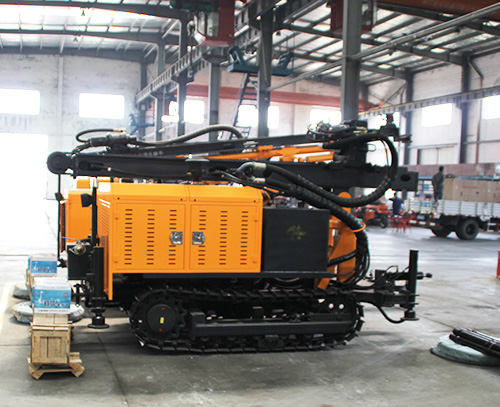

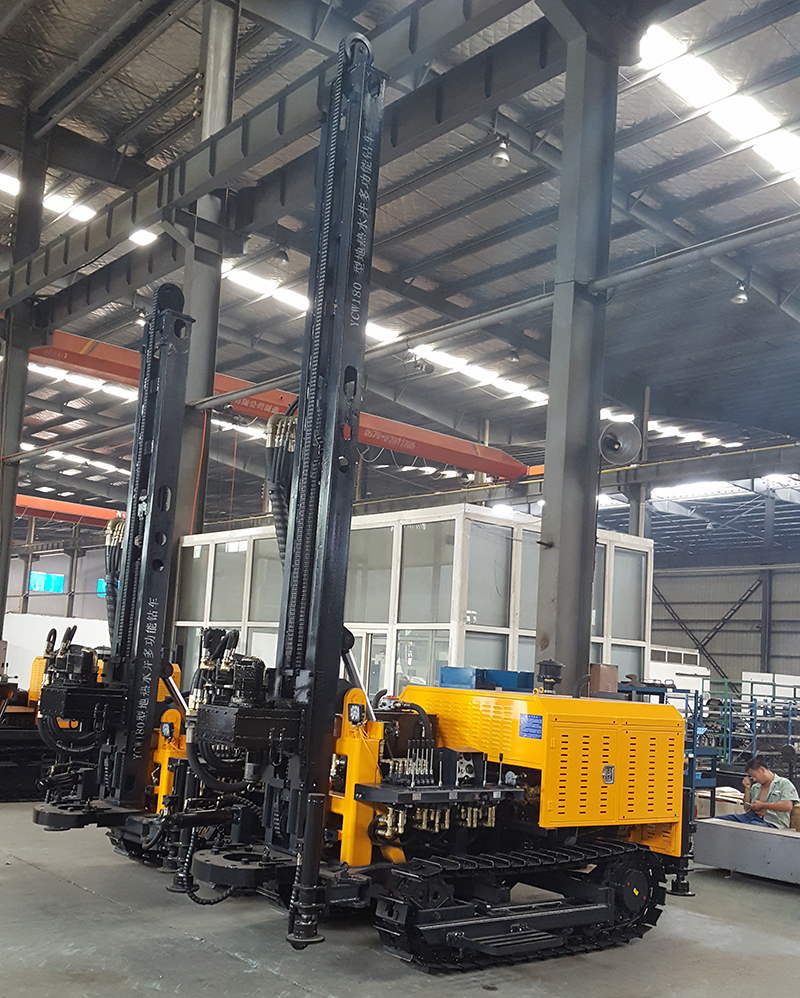

KW180/YCW180 Water Well Drilling Rig
KW180/YCW180 Crawler Water Well Drilling Rig is a light, highly-efficient and multifunction drilling device, characterized by advanced structure, convenient use, high operating efficiency, reliability
Category: Surface drill rigs
Product Description
KW180/YCW180 Crawler Water Well Drilling Rig is a light, highly-efficient and multifunction drilling device, characterized by advanced structure, convenient use, high operating efficiency, reliability and durability, extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums. This drill adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion, dramatically reducing labor intensity, shortening the assistant time, and improving construction efficiency and engineering quality.
Leave a Review
Related Products
KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize op...
Kaishan high pressure series mobile screw air compressor: saving oil for 100L every day!Triple air filter system / Tr...
Brand: Kaishan
Type: Portable,stationary
Power:Cummins(550hp/404kw)
Yuchai(150hp/118kw-750hp/551kw)...
Technical Parameters of KW180/YCW180 Crawler Water Well Drilling Rig
Parameters
Unit
KW180
Drilling depth maximum
m
180
Drilling diameter
mm
φ110-202
Working Working pressure
mp
1.05-2.46
Air consumption
m3/min
16-30
Drill rod length
m
2
Dia. of drill rod
mm
φ89/φ76
Propeller shaft pressure
t
0~2.5
Lifting force
t
5
Cylinder tensile force
t
32(4pcs)
Propeller shaft pressure
m
0.4
Slide stroke
mm
2380
Slow lifting speed
m/min
8
Slow forward speed
m/min
0~15
Fast lifting speed
m/min
26
Fast forward speed
m/min
51
Rotary output torque
N·m
4200
Rotary output speed
Rev / min
33~67
Hoist lifting force
t
---
Diesel engine
----
Yuchai 4DKCG2-80
Parameter of engine
----
58Kw/2400rpm
Travel speed
km/h
0~2.5
Climbing capacity
℃
20
Weight
t
4.5
Overall dimesion
m
2.7×1.55×2.35
Applicable condition
Loose layers and bedrock
Drilling mode
Rotation hydraulique et percer par frappeur ou forage à boue
Supporting Hammer
Medium -high pressure series
