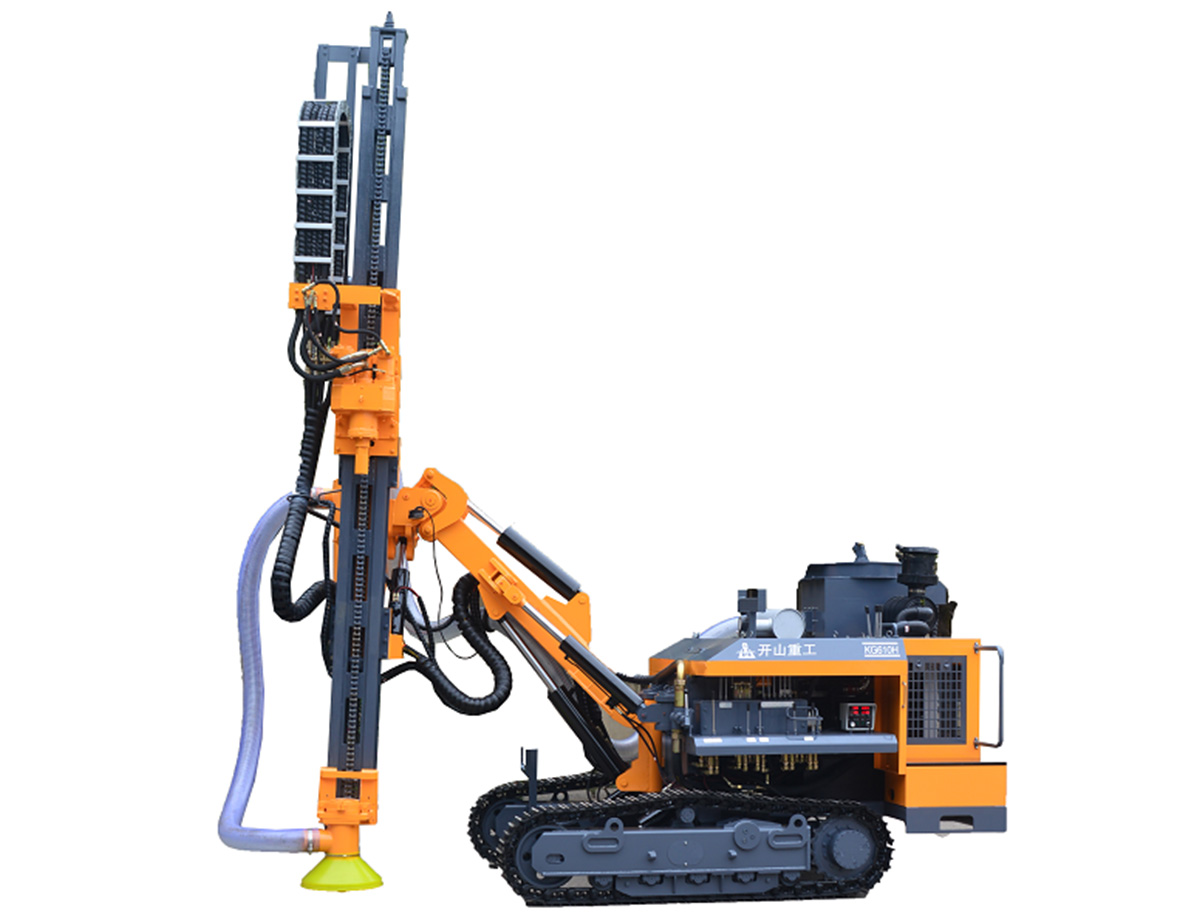

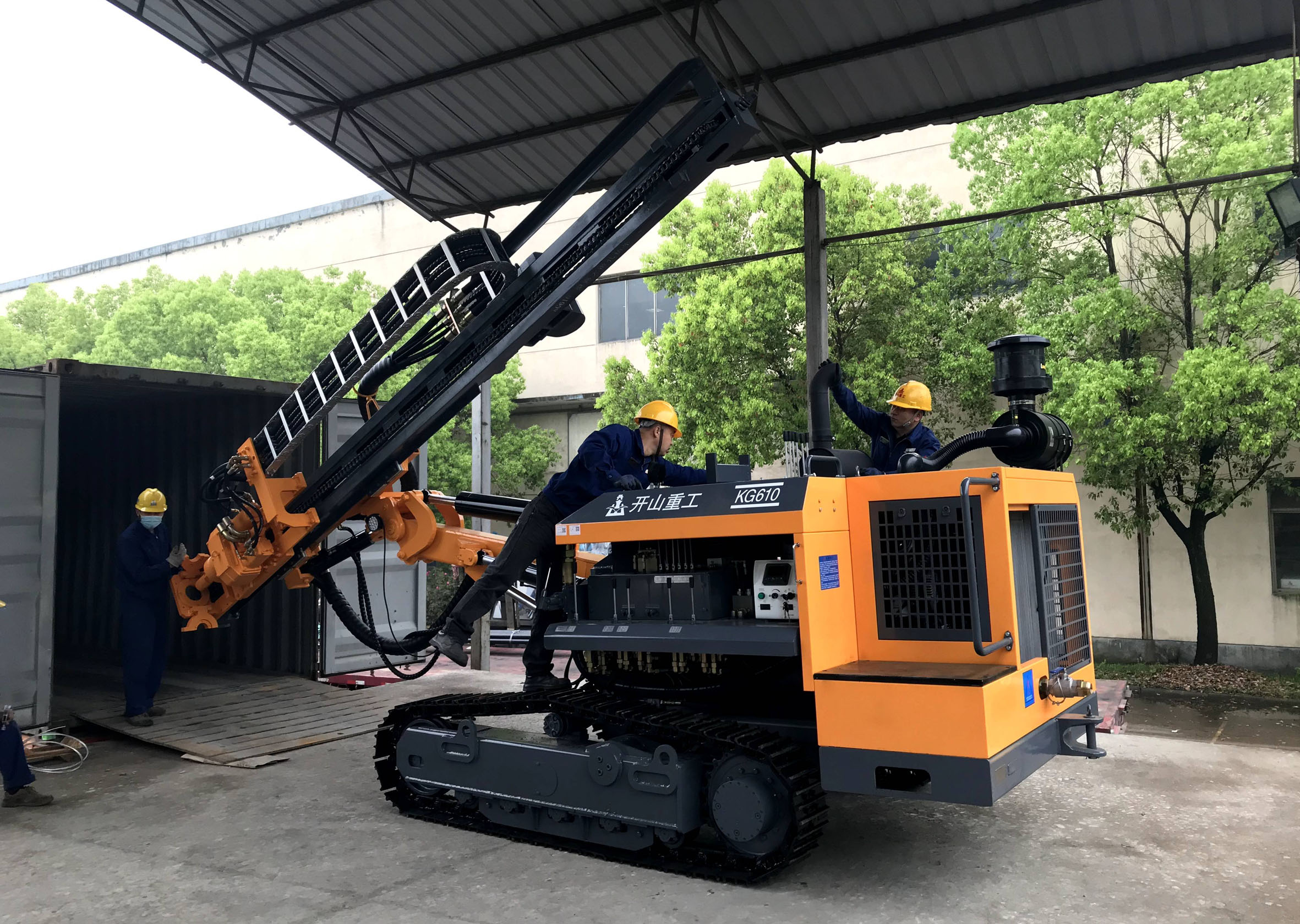

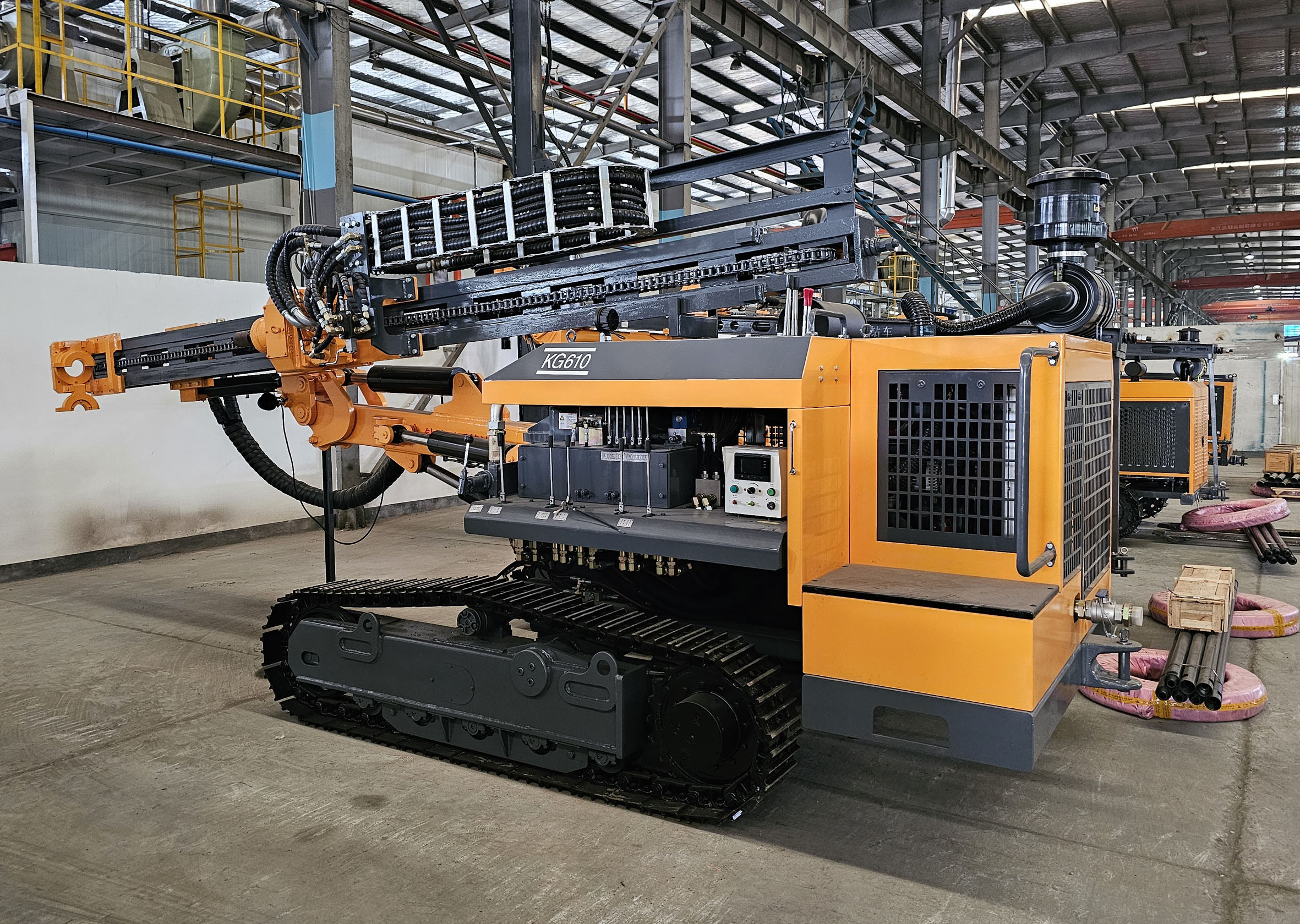

KG610/KG610H Surface DTH Drilling Rig
KG610/KG610H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on KG960 platform,it is with
Category: Surface drill rigs
Product Description
KG610/KG610H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on KG960 platform,it is with piston travel motor,improve the working pressure and climbing capacity.
KG610H is assembled with dust collector,it is suitable for environmental standards.
Leave a Review
Related Products
KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize op...
Kaishan high pressure series mobile screw air compressor: saving oil for 100L every day!Triple air filter system / Tr...
Brand: Kaishan
Type: Portable,stationary
Power:Cummins(550hp/404kw)
Yuchai(150hp/118kw-750hp/551kw)...
Technical Parameters of KG610/KG610H Surface DTH Drilling Rig
Dimension
6800*2200*2850mm
6800*2450*2850mm
Drilling diameter
Φ105-203mm
Economic drilling depth
40m
Rotation speed
110r/min
Rotary torque
4500N·m
Lifting force
25KN
Propulsion mode
Hydraulic Motor - Chain
Feed length
4010mm
Travel speed
0-4Km/h
Climbing capacity
30°
Ground clearance
440mm
Feed pitch angle
down 135° up 50°
Feed swing angle
left 50° right 50°
boom pitch angle
down 50° up 25°
boom swing angle
left 45° right 45°
Feed extension
900mm
Power
Cummins QSB3.9-C125(92KW/2200r/min)
Drill rod
76*3m
