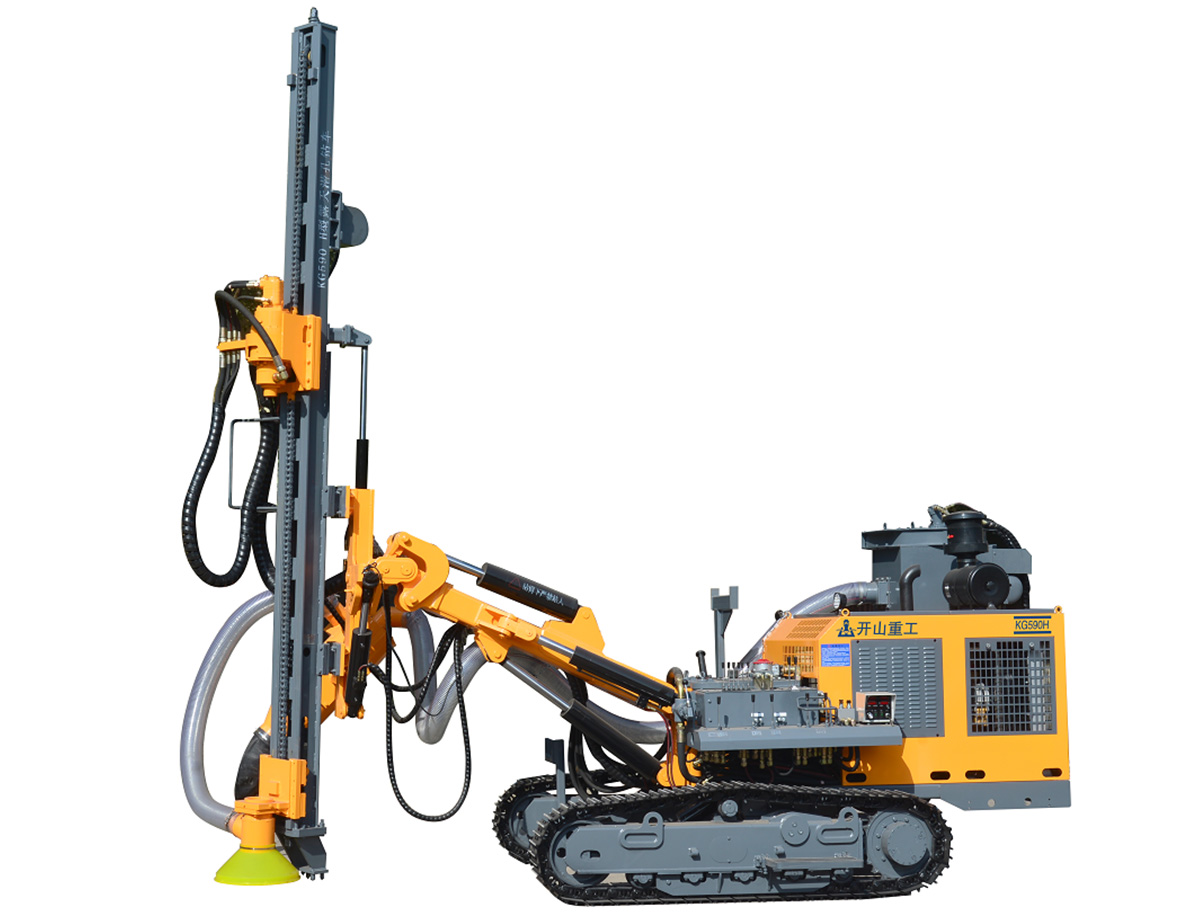

KG590/KG590H Surface DTH Drilling Rig
KG590/KG590H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on KG935S platform,it is wit
Category: Surface drill rigs
Product Description
KG590/KG590H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on KG935S platform,it is with piston travel motor,improve the working pressure and climbing capacity.
KG520H is assembled with dust collector,it is suitable for environmental standards.
operation system
rotary system
multi boom
travel system
Leave a Review
Related Products
KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize op...
Kaishan high pressure series mobile screw air compressor: saving oil for 100L every day!Triple air filter system / Tr...
Brand: Kaishan
Type: Portable,stationary
Power:Cummins(550hp/404kw)
Yuchai(150hp/118kw-750hp/551kw)...
Technical Parameters of KG590/KG590H Surface DTH Drilling Rig
Dimension
6900*2300*2700mm
7100*2300*2700mm
Drilling diameter
Φ105-152mm
Economic drilling depth
25m
Rotation speed
100r/min
Rotary torque
5000N·m
Lifting force
25KN
Propulsion mode
Hydraulic Motor - Chain
Feed length
4150mm
Travel speed
0-4Km/h
Climbing capacity
≤30°
Ground clearance
440mm
Feed pitch angle
down 135° up50°
Feed swing angle
left 50° right 50°
boom pitch angle
down 50° up 25°
boom swing angle
left 45° right 45°
Feed extension
900mm
Diesel engine
Yuchai YC4DK100-T304 (73KW/2200r/min)
Drill rod
76*3m
Toe-hole drilling
Min.350mm,Max.3500mm
