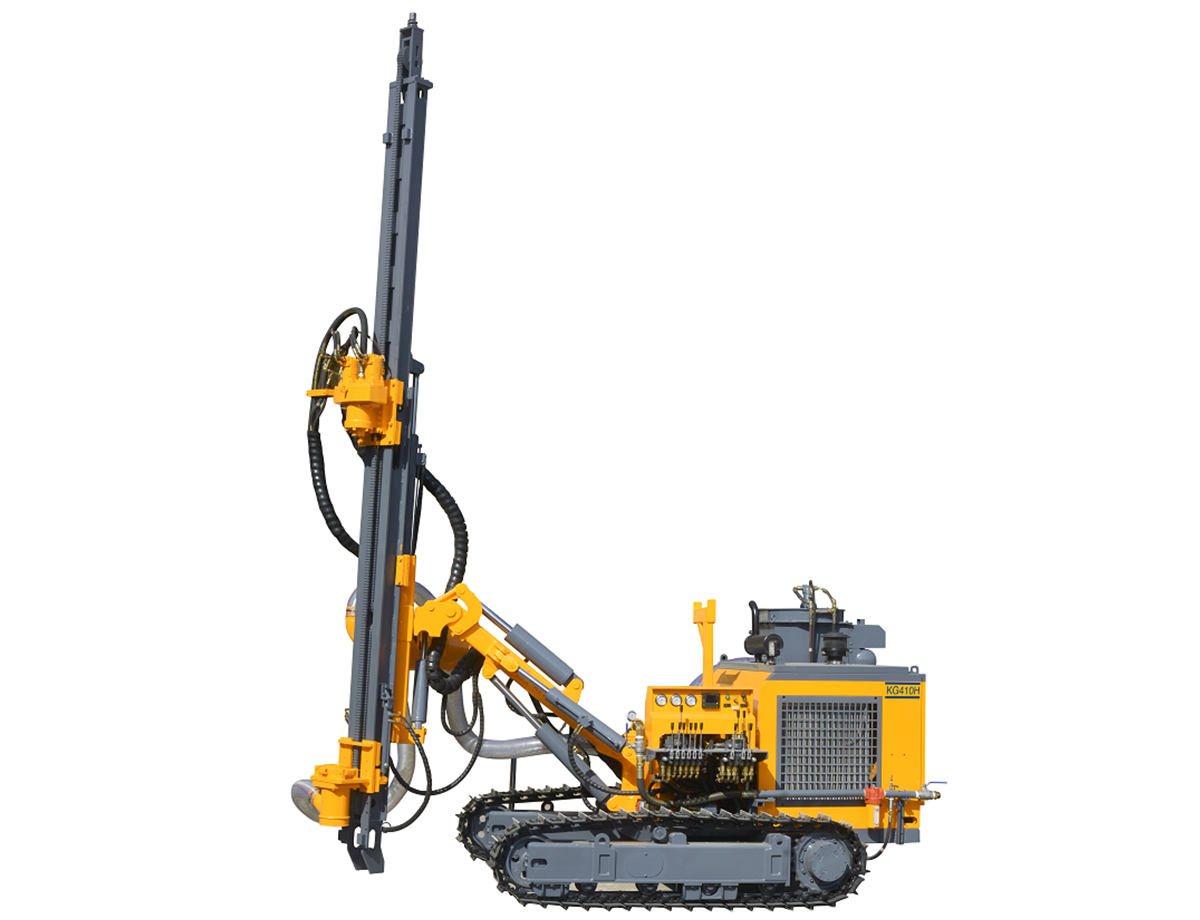

KG410/KG410H Surface DTH Drilling Rig
KG410/KG410H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on YC726 platform,it is with
Category: Surface drill rigs
Product Description
KG410/KG410H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on YC726 platform,it is with piston travel motor,improve the working pressure and climbing capacity.
KG410H is assembled with dust collector,it is suitable for environmental standards.
Technical Parameters of KG410/KG410H Surface DTH Drilling Rig
Leave a Review
Related Products
KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize op...
Kaishan high pressure series mobile screw air compressor: saving oil for 100L every day!Triple air filter system / Tr...
Brand: Kaishan
Type: Portable,stationary
Power:Cummins(550hp/404kw)
Yuchai(150hp/118kw-750hp/551kw)...
Dimension
6150*2350*2700mm
6150*2350*2700mm
Drilling diameter
Φ90-115mm
Economic drilling depth
25m
Rotation speed
120r/min
Rotary torque
2000N·m
Lifting force
40KN
Propulsion mode
Hydraulic Cylinders - Chain
Feed length
3980mm
Travel speed
0-2.5Km/h
Climbing capacity
≤30°
Ground clearance
280mm
Feed pitch angle
down 135° up50°
Feed swing angle
left 100° right45°
boom pitch angle
down 50° up25°
boom swing angle
left 44° right45°
Feed extension
900mm
Diesel engine
Yuchai YCD4R23T8-80(59KW/2400r/min)
Drill rod
64*3m
Toe-hole drilling
Min.350mm,Max.2840mm
