This type air compressor is designed according to 40 bar maximum pressure.Rotor profile: SKY 2G Patented rotor profile with highest efficiency.Two-stage compression: flexible design is corresponding t
Category: Air Compressor
This type air compressor is designed according to 40 bar maximum pressure.
Rotor profile: SKY 2G Patented rotor profile with highest efficiency.
Two-stage compression: flexible design is corresponding to the lift valve, which has obtained global patent for invention.
It is with heavy duty design, SKF bearing, connected to the drive directly without gear noise.
The air compressor has optimum structure and maximum reliability.

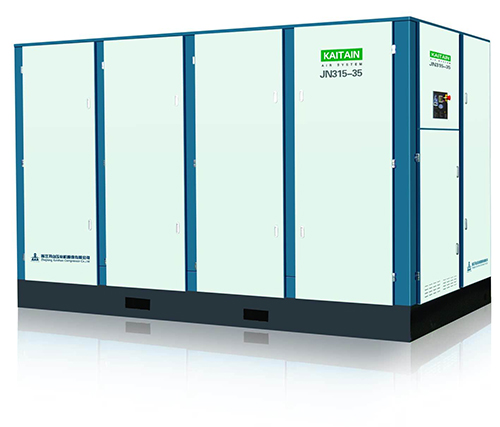

Technical Parameters of JN High Pressure Screw Air Compressor
Model
Motor power
kW
Capacity
M3/min
Working pressure
bar
Dimensions
mm
JN200-25
200
20
25
3760×2260×2260
JN200-35
200
16
35
3760×2260×2260
JN250-25
250
26
25
3760×2260×2260
JN250-35
250
21
35
3760×2260×2260
JN315-25
315
31
25
3760×2260×2260
JN315-35
315
26
35
3760×2260×2260
JN400-25
400
39
25
3760×2260×2260
JN400-35
400
32
35
3760×2260×2260
